PR1553DBAT
ProtoBoard for 1553DB Box (PR1553DBAT)

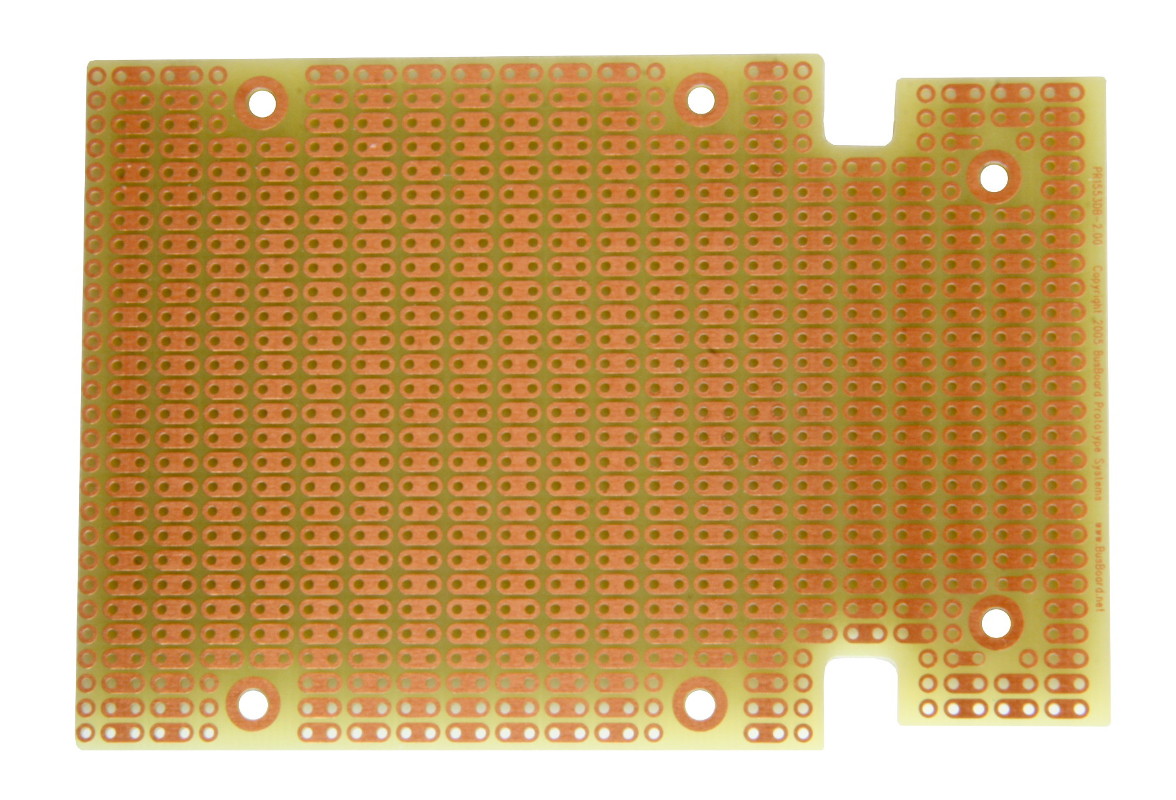

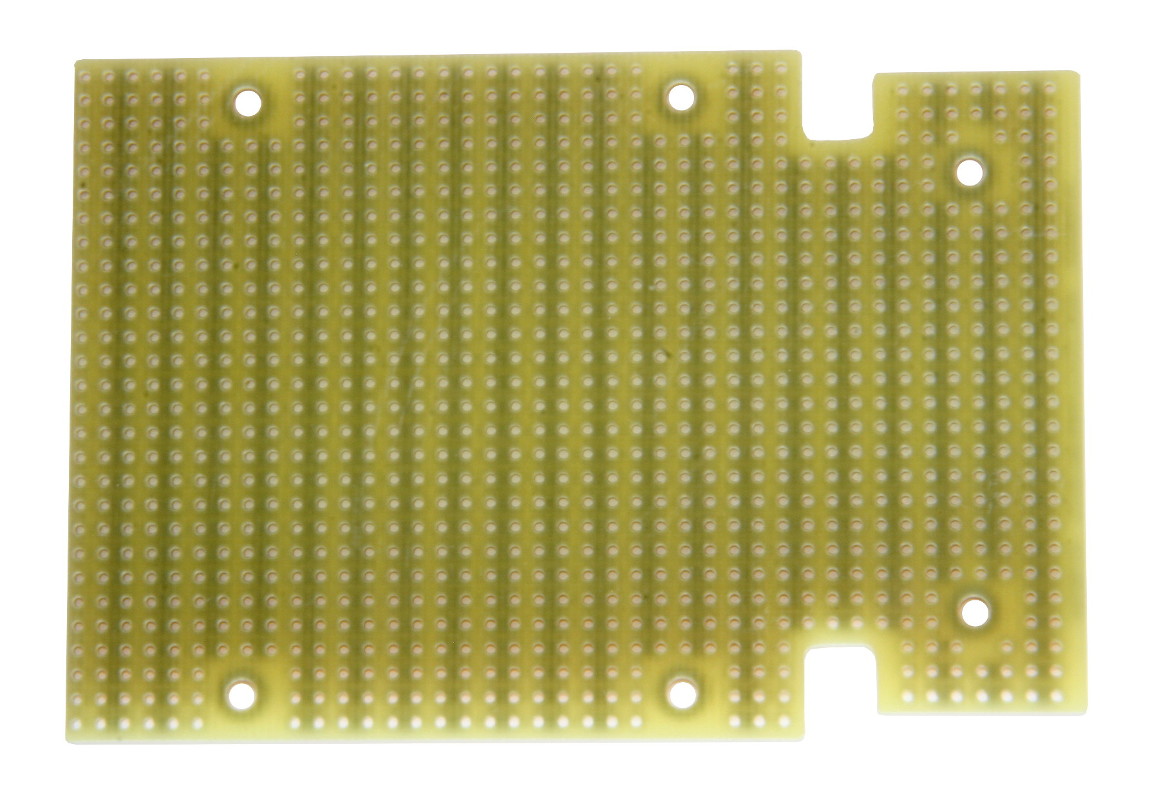

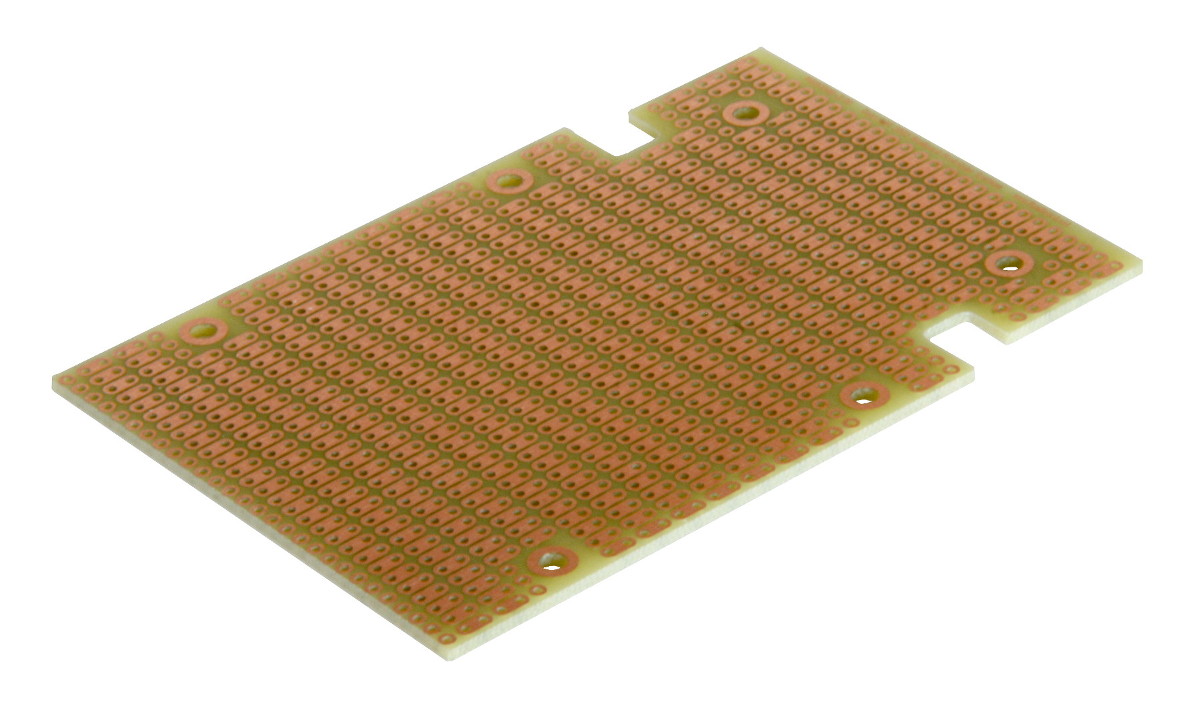

PR1553DBAT ProtoBoard for 1553DB Box, 2-Hole Strips



Features:
  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 0.042" holes are drilled on 0.1" (2.54mm) centers. 6 mounting holes. Screws provided.
  • PCB Size 4.18 x 2.85in (106.2 x 72.4mm)
Description:

The PR1553DBAT is a prototyping circuit board (PCB) designed to fit the Hammond 1553DxxBAT hand-held plastic enclosure (with battery compartment). It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area. It can be used as a stand-alone prototyping board, or installed in a Hammond 1553DxxBAT enclosure.

Documentation:

Datasheet
PDF - 693KB
