PR1590B ProtoBoard for 1590B Box (PR1590B)
PR1590B ProtoBoard for 1590B Box, 2-Hole Strips



Features:

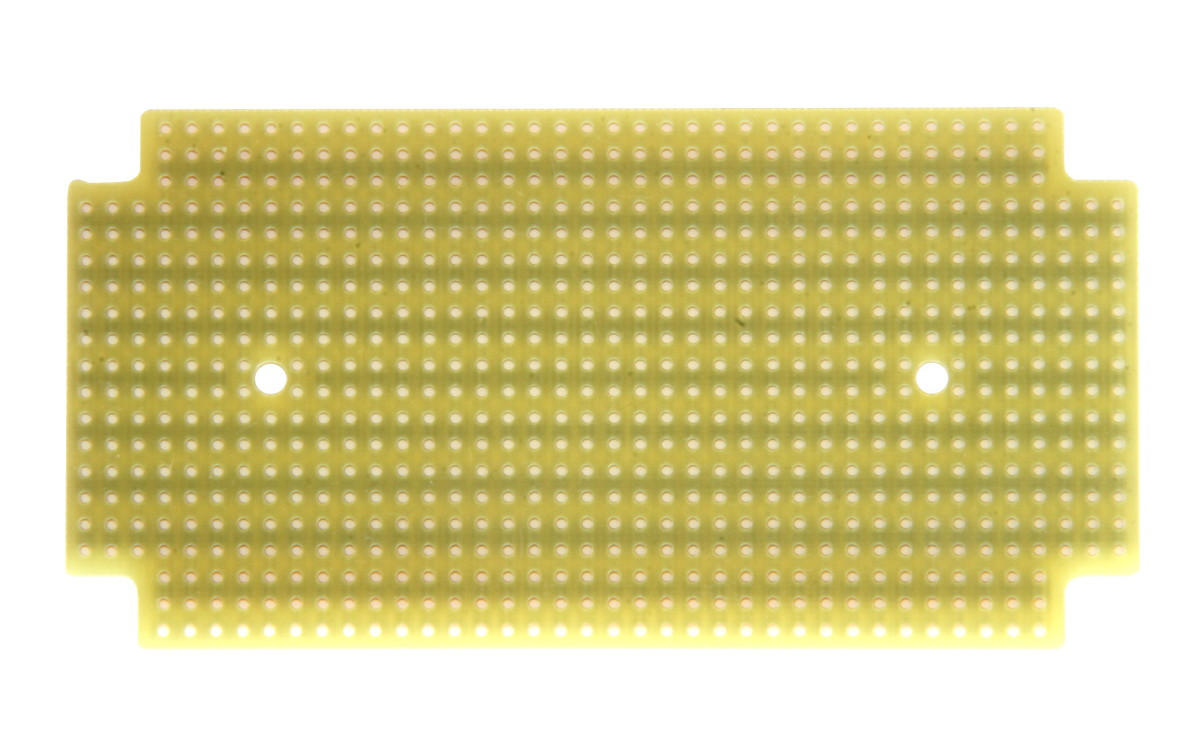

  • Single-sided high-quality FR4 glass-epoxy circuit board.

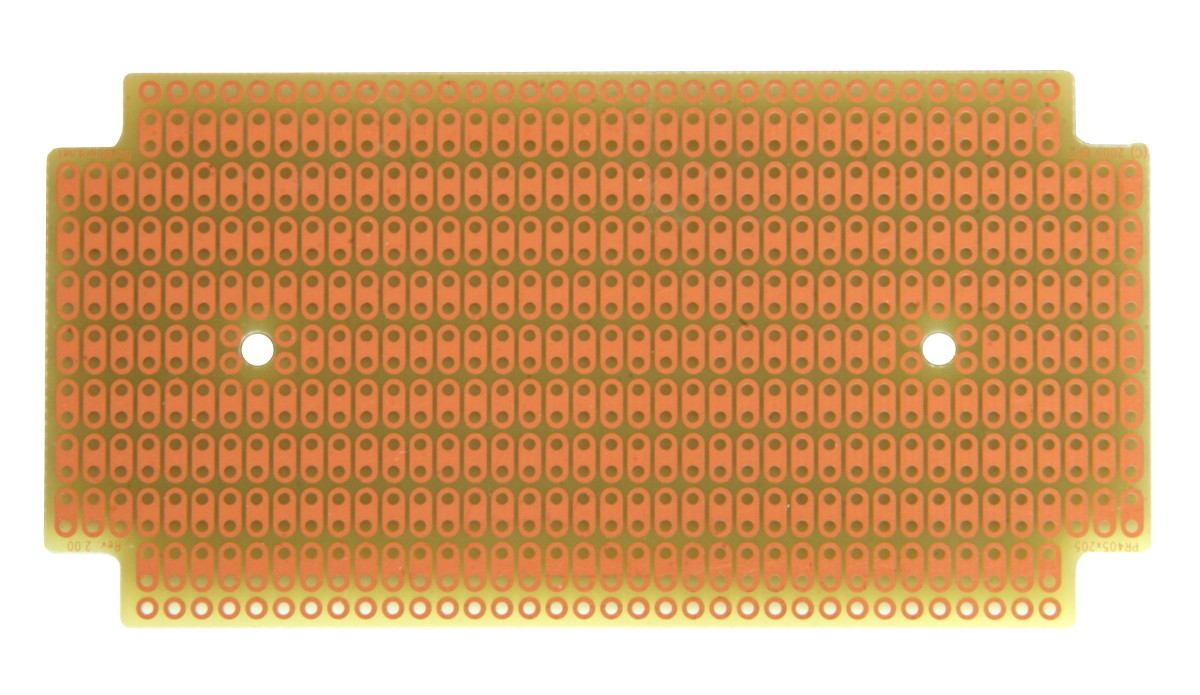

  • Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 0.042" holes are drilled on 0.1" (2.54mm) centers. 2 mounting holes.
  • PCB Size 2.05 x 4.05 in (52.1 x 102.9 mm)
Description:

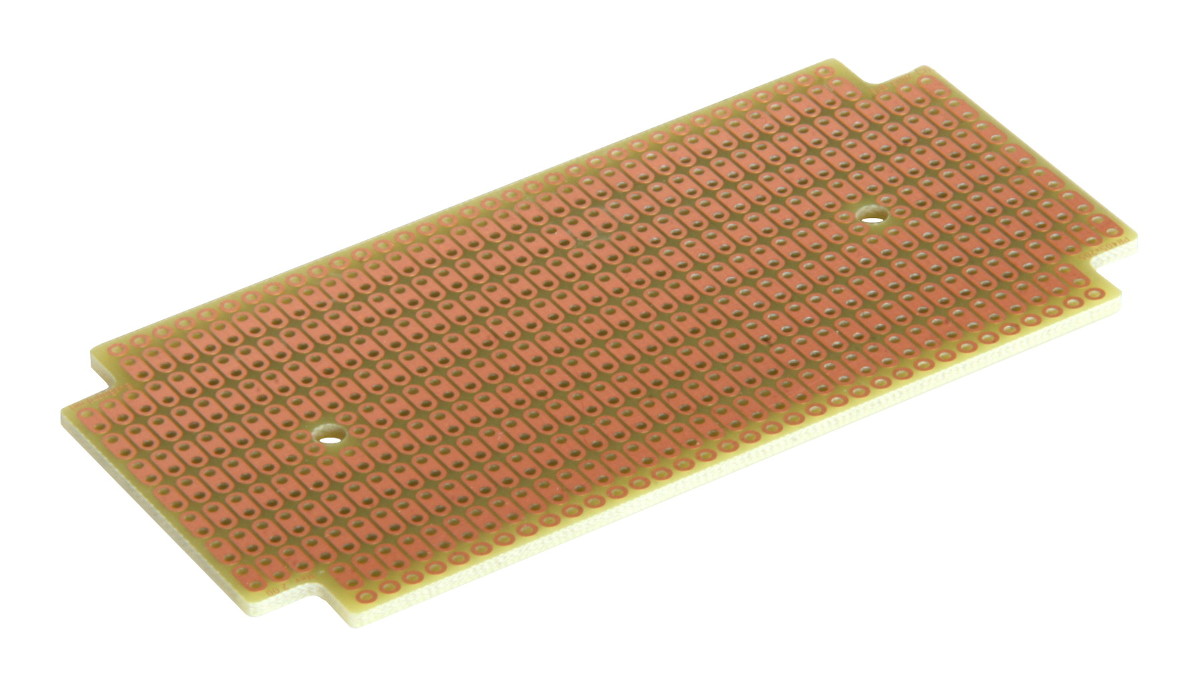

The PR1590B is a prototyping circuit board (PCB) designed to fit the Hammond 1590B die-cast aluminum enclosure. It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect  parts while maximizing usable board area. It can be used as a stand-alone prototyping board, or installed in a Hammond 1590B enclosure.

Documentation:

Datasheet
PDF - 574KB
