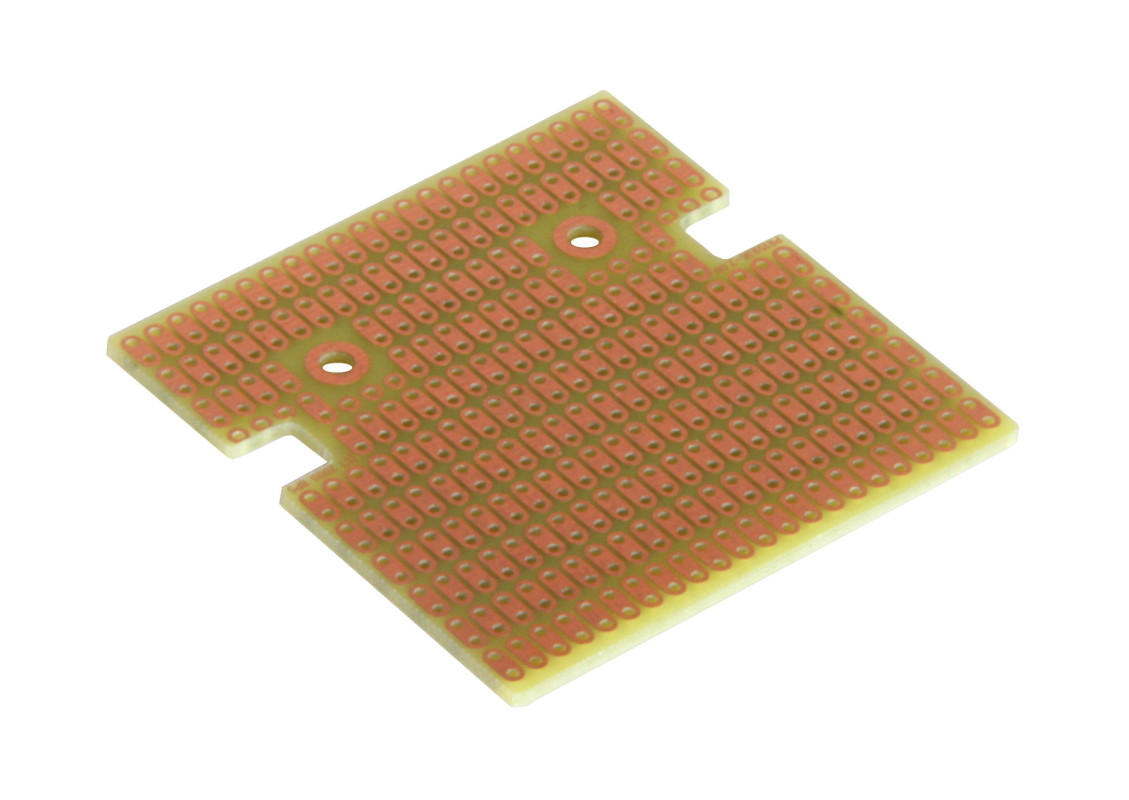

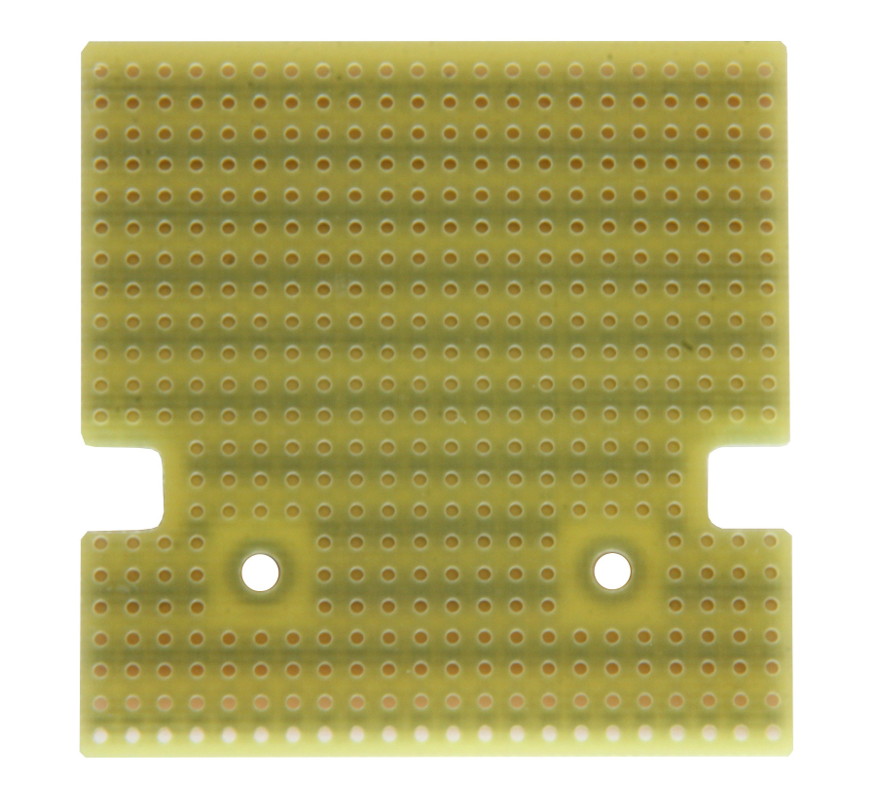

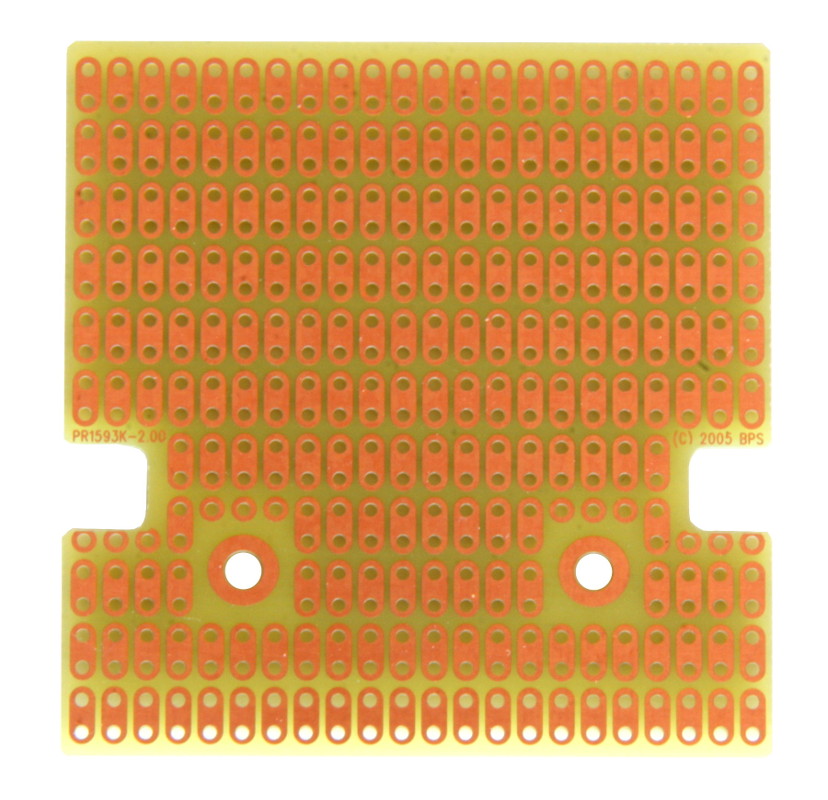

PR1593K ProtoBoard for 1593K Box (PR1593K)
PR1593K ProtoBoard for 1593K Box, 2-Hole Strips



Features:
  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • Convenient 2-hole ProtoBoard pattern provides an easy way to connect parts.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 0.042" holes are drilled on 0.1" (2.54mm) centers. 2 mounting holes. Screws provided.
  • PCB Size 2.30 x 2.26 in (58.4 x 57.4 mm)
Description:

The PR1593K is a prototyping circuit board (PCB) designed to fit the Hammond 1553K hand-held plastic enclosure. It has the convenient 2-hole ProtoBoard pattern, which provides an easy way to connect parts while maximizing usable board area. It can be used as a stand-alone prototyping board, or installed in a Hammond 1593K enclosure.

Documentation:

Datasheet
PDF - 205KB
