POW3U
PowerBoard-3U (POW3U)

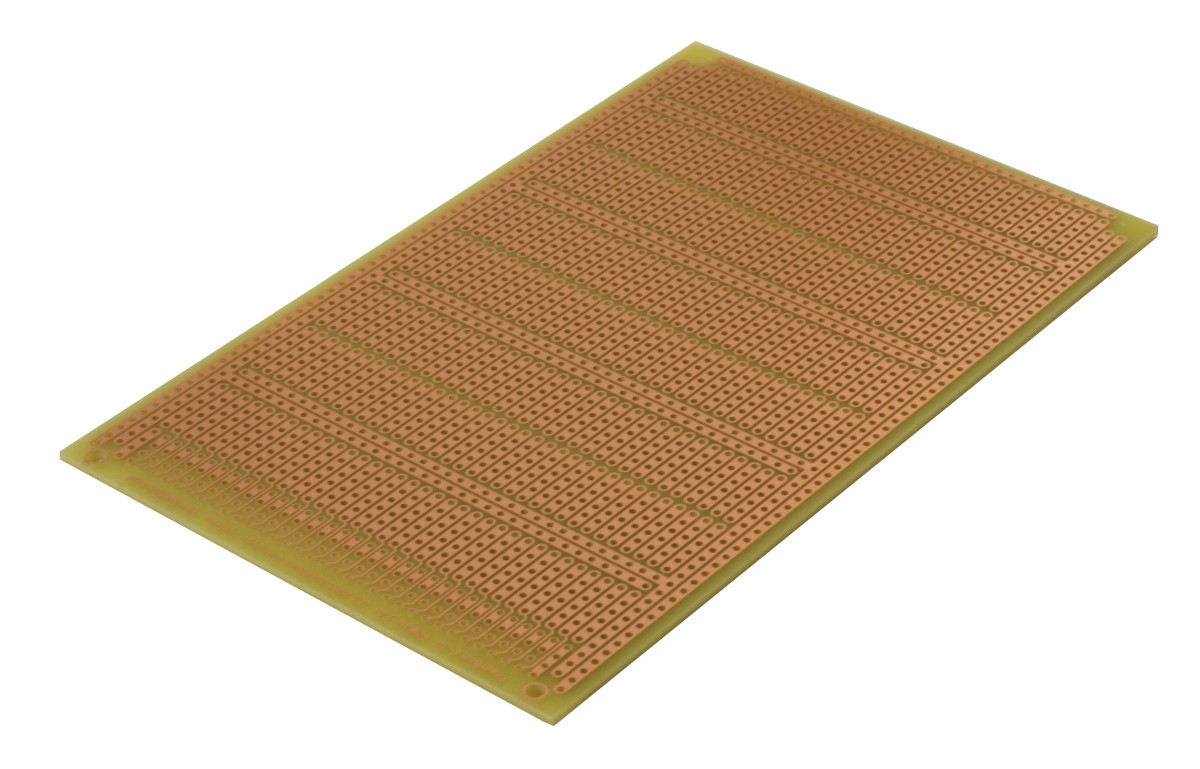

POW3U PowerBoard-3U with Power Rails



Features:

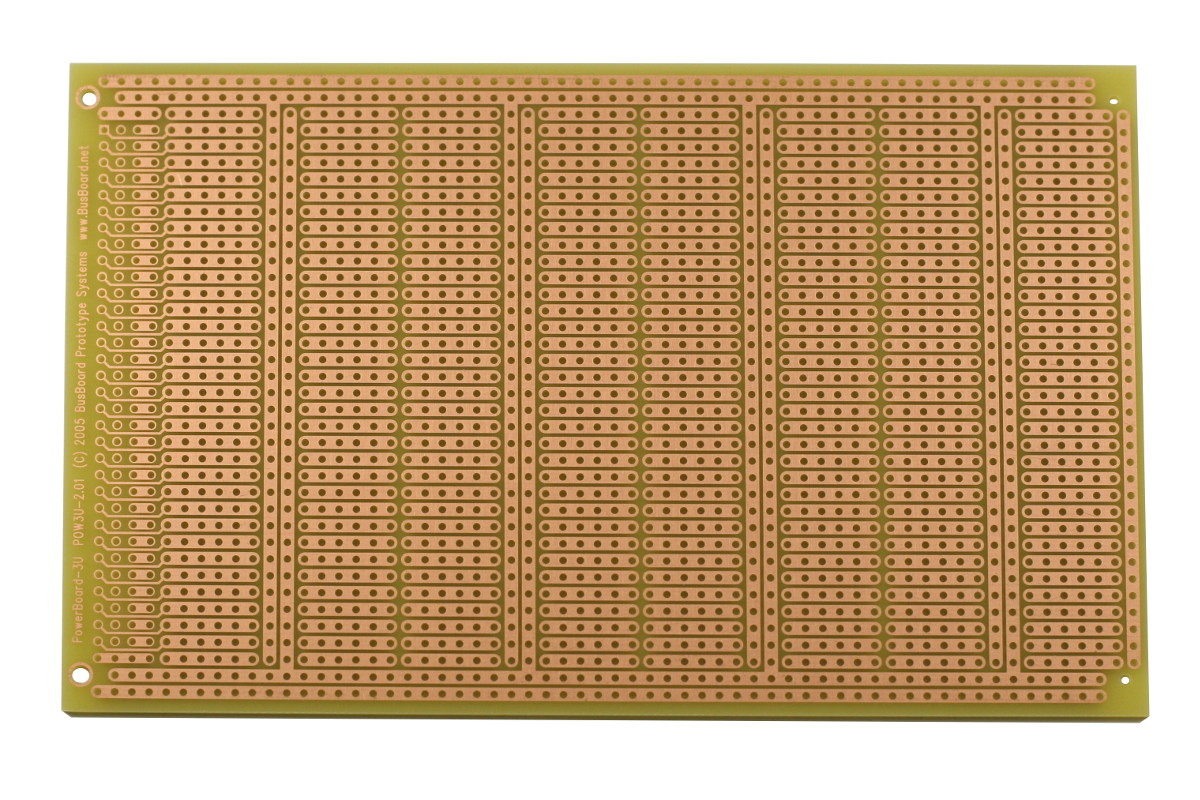

  • 6 hole strips with interleaved power and ground rail tracks.

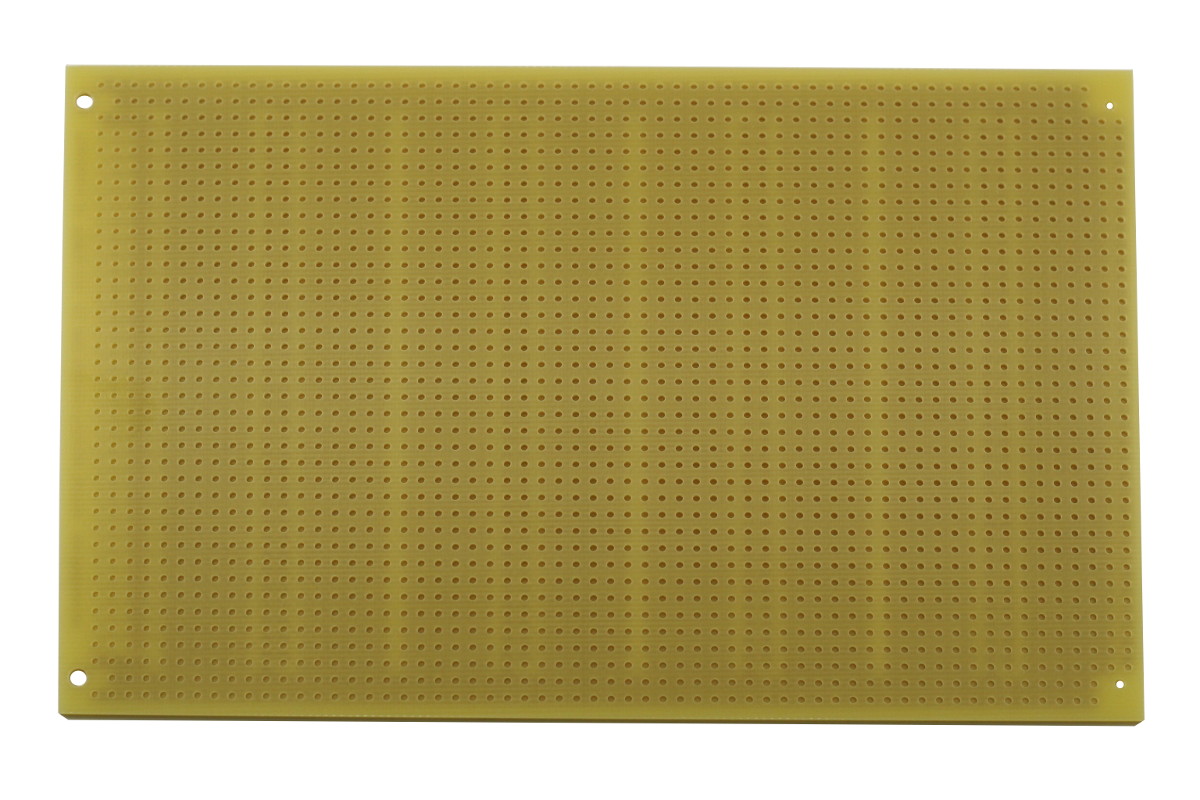

  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 38 x 62 holes, 0.037" holes are drilled on 0.1" (2.54mm) centers.
  • Standard single height (3U) Eurocard/VME size. 3.9" wide, 6.3" long, 1/16" thick (100 x 160 x 1.6mm). Off-the-shelf 3U size enclosures are available.
Description:

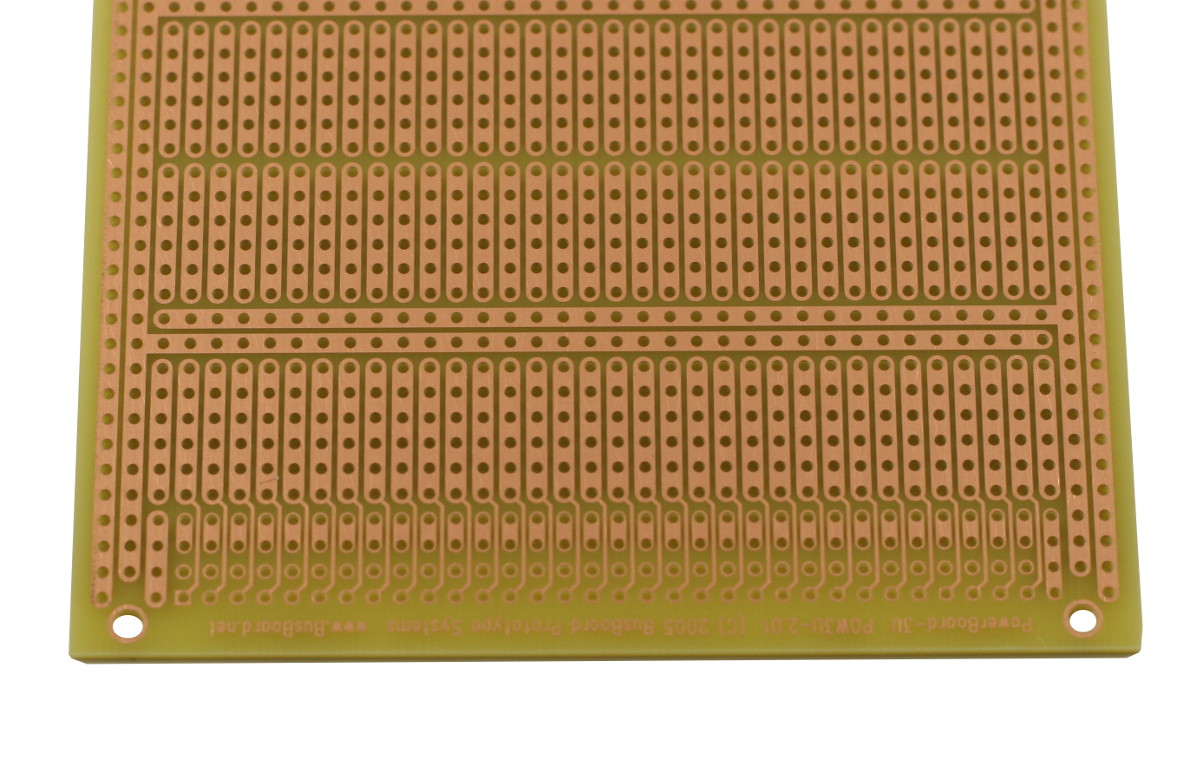

The PowerBoard-3U prototyping circuit board has interleaved power and ground rails to easily distribute power to your circuits. It has a general purpose strip board circuit pattern with 6 holes per strip for analog and digital use. It is a single-sided board with holes on 0.1” centers. The PCB accepts a 96 pin DIN-41612 VME connector for backplane or board-to-board applications. Holes for ejector latches are provided.

Documentation:

Datasheet
PDF - 357KB

Plan Sheet
PDF - 248KB
