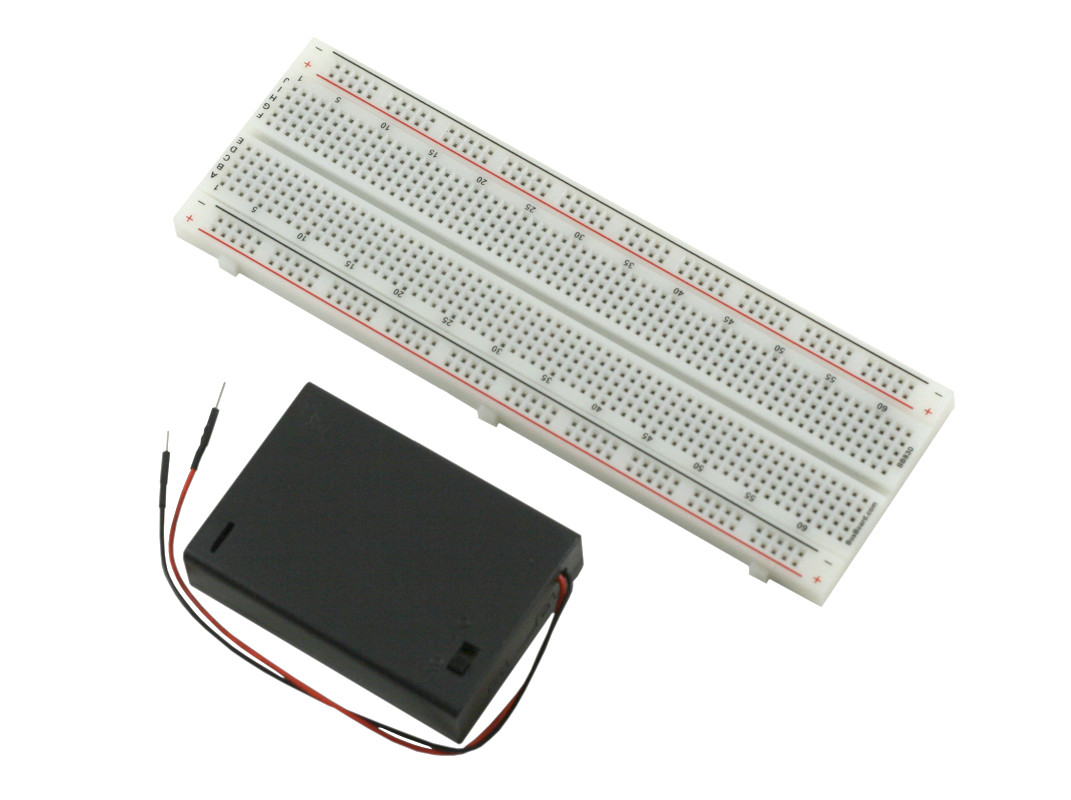

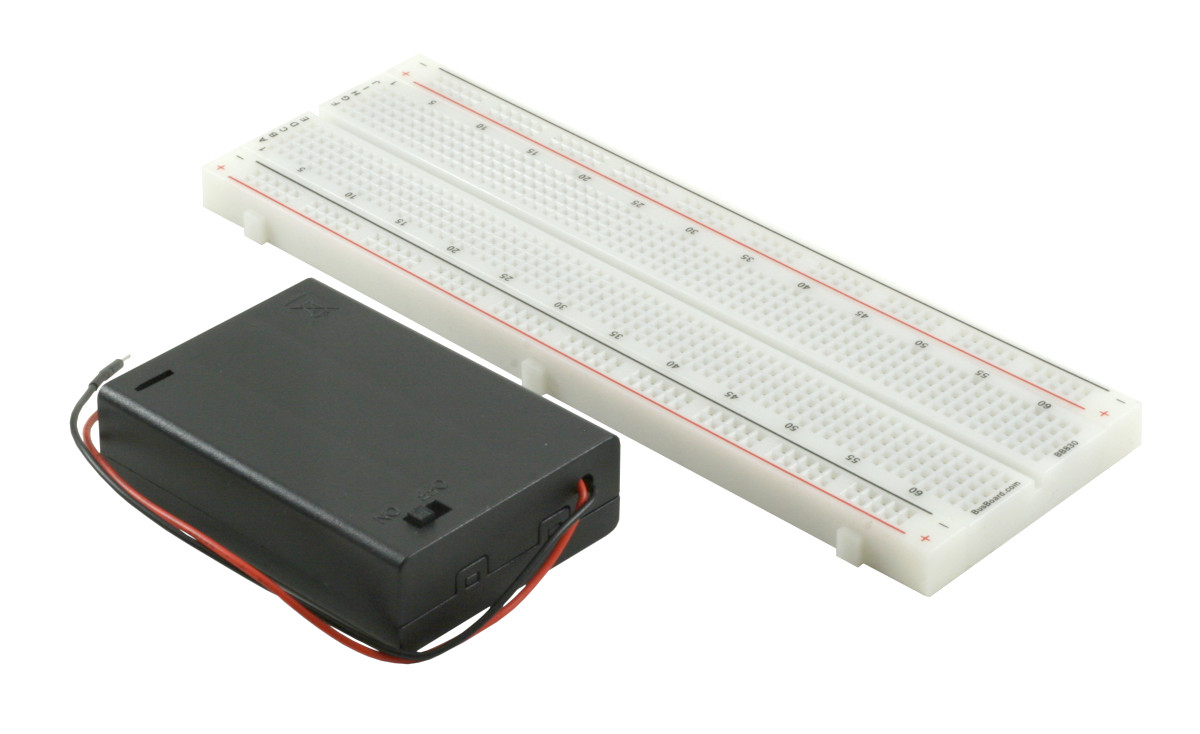

BB400 Battery Box Kit (KIT-BB400+PW3)
A 400 tie-point Solderless BreadBoard and a 3AA Battery Box with switch and breadboard pins

BB830 Features:
  • 830 tie points total: 630 tie-point IC-circuit area plus two 100 tie-point distribution strips providing 4 power rails.
  • White ABS plastic body with black printed legend. Color legend on distribution strips.
  • Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
  • Rated at 36 Volts, 2 Amps.
  • Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
  • Size: 6.5 x 2.2 x 0.3in (165.1 x 54.6 x 8.5mm)
  • Peelable adhesive tape backing provided for attaching to a surface. Metal back plate provided.
PW-3AA Features:
  • Provides 4.5 Volt power from 3 AA cells (not included).
  • Smooth machined male pins designed for breadboard use.
  • Great for use with solderless breadboards (such as the BB830 and BB400).
  • 26AWG stranded wire, 15cm wire+pin length, strain relief heatshrink tubing.
BB830 Description:

BreadBoard-830 is a solderless (plug-in) breadboard with 830 connection tie-points (i.e. 830 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB830 has a 630 tie-point IC-circuit area plus four 50 tie-point power rails. The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface and an optional metal back plate is provided. BPS BreadBoards are Lead-Free and RoHS Compliant. Finished projects can be moved to a BR1 or SB830 Solderable PC BreadBoard to make them permanent.

PW-3AA Description:

The PW-3AA battery box has breadboard pins designed to plug into your breadboard. The machined male breadboard pins with strain relief heatshrink tubing provide a reliable long-lasting connection (as opposed to tinned wires that fatigue and break).

The battery box holds 3 AA batteries to provide 4.5 Volt power for your projects. A built-in slideswitch turns power on and off.

The battery box is best for circuits that don’t need an exact supply voltage. The voltage will go down from 4.5 Volts to 2.4 Volts as the batteries drain. For example, transistor circuits often work over a wide voltage range, and some integrated circuits accept a wide 3.3V to 5V supply voltage. If your circuit needs exactly 3.3 Volts, you will need to add a LDO (low dropout regulator). If your circuit needs 5 Volts, you need more AA batteries and a 5V regulator.

Documentation:

Datasheet
PDF-505KB
Where to Purchase:

BreadBoard & Battery Box (KIT-BB830+PW3)


SKU#: KIT-BB830+PW3

SKU#: B01J29MOHQ
