Solderless Plug-in BreadBoard (BB400)
BB400 Solderless Plug-in BreadBoard, 400 tie-points, 4 Power Rails
SELECT A STYLE:
WHITE

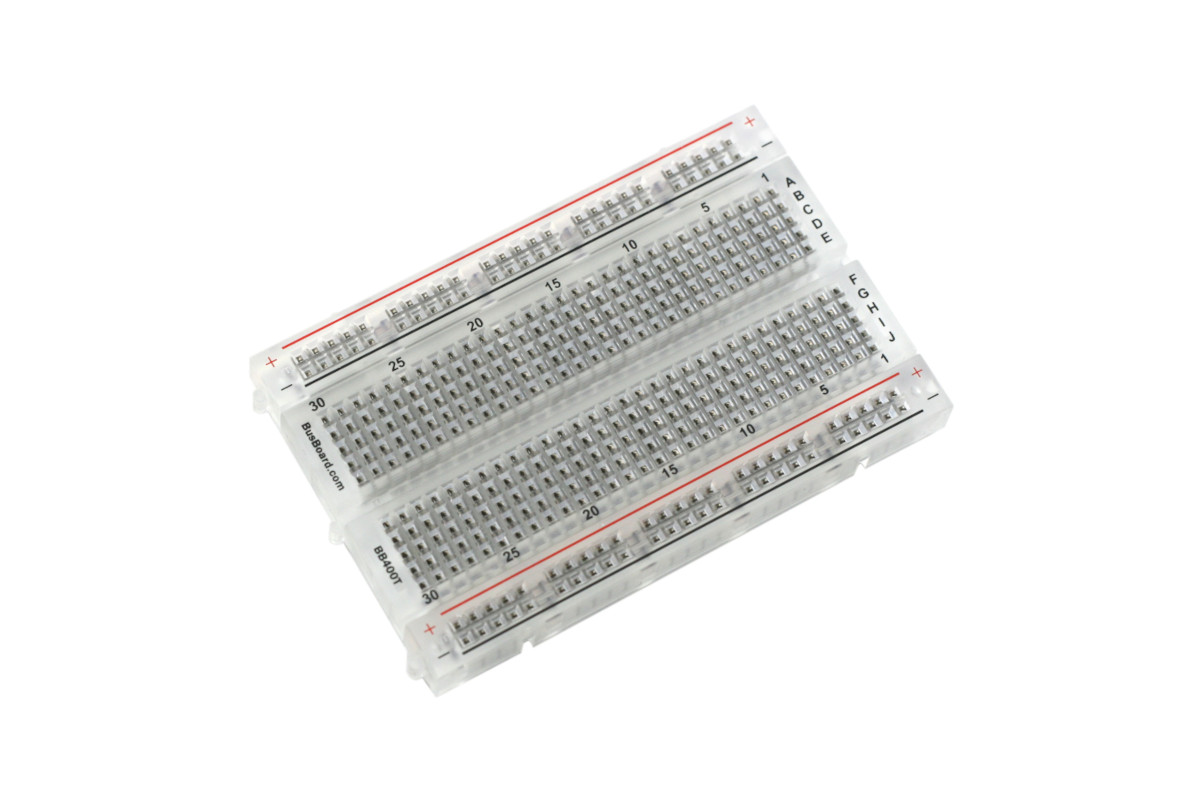

TRANSPARENT
Features:
  • 400 tie points total: 300 tie-point IC-circuit area plus two 50 tie-point distribution strips providing 4 power rails.
  • ABS plastic body with black printed legend. Color legend on distribution strips.
  • Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
  • Rated at 36 Volts, 2 Amps.
  • Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
  • Size: 3.3 x 2.1 x 0.3in (84 x 54.3 x 8.5mm).
  • Peelable adhesive tape backing provided for attaching to a surface.
Description:

BreadBoard-400 is a solderless (plug-in) breadboard with 400 connection tie-points (i.e. 400 wire insertion holes). It has 4 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB400 has a 300 tie-point IC-circuit area plus four 25 tie-point power rails. The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface. BPS BreadBoards are Lead-Free and RoHS Compliant. Finished projects can be moved to a SB400 or SB404 Solderable PC BreadBoard to make them permanent.

Documentation:

Datasheet
PDF-335KB
