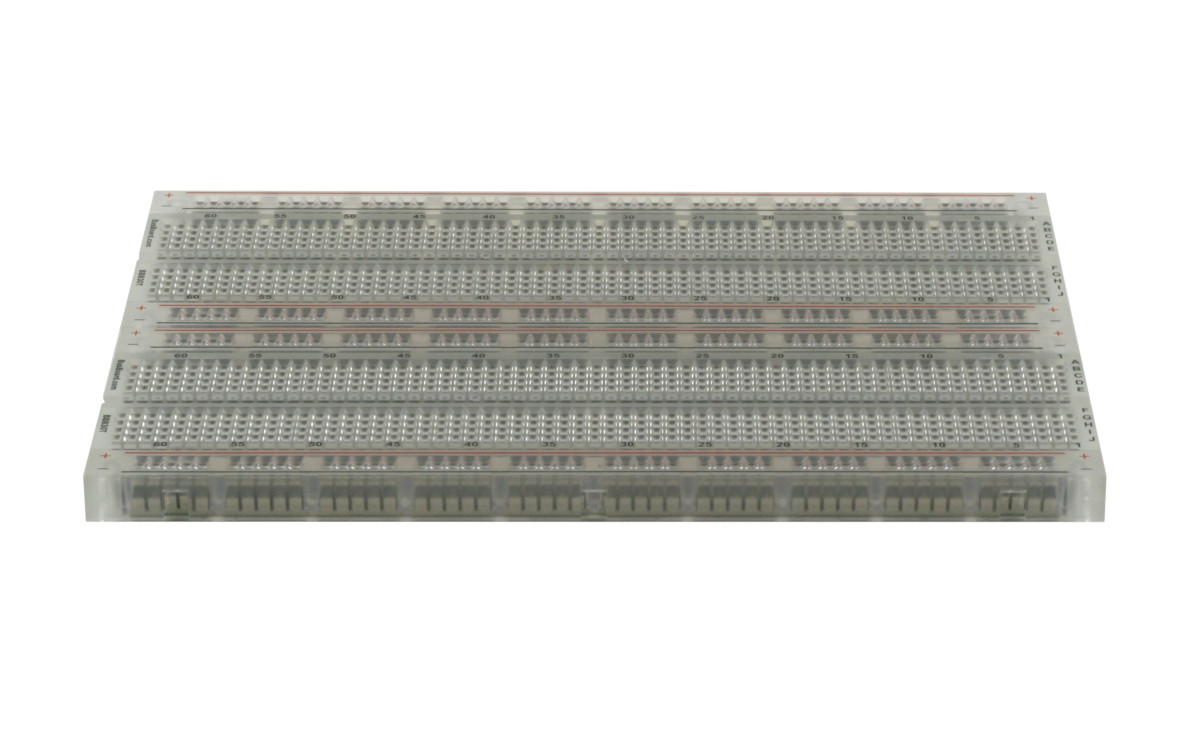

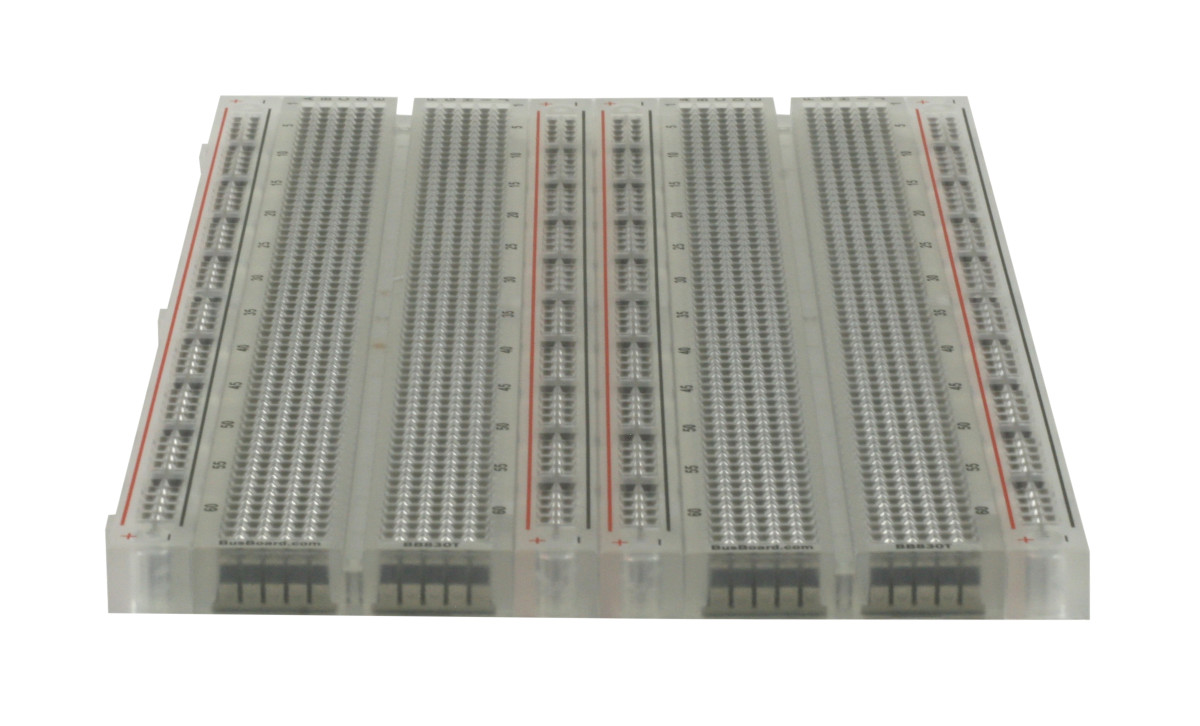

Solderless Plug-in BreadBoard (BB1660)
BB1660 Solderless Plug-in BreadBoard, 1660 tie-points, 8 Power Rails
SELECT A STYLE:
WHITE
TRANSPARENT
Features:
  • 1660 tie points total: 1260 tie-point IC-circuit area plus four 100 tie-point distribution strips providing 8 power rails.

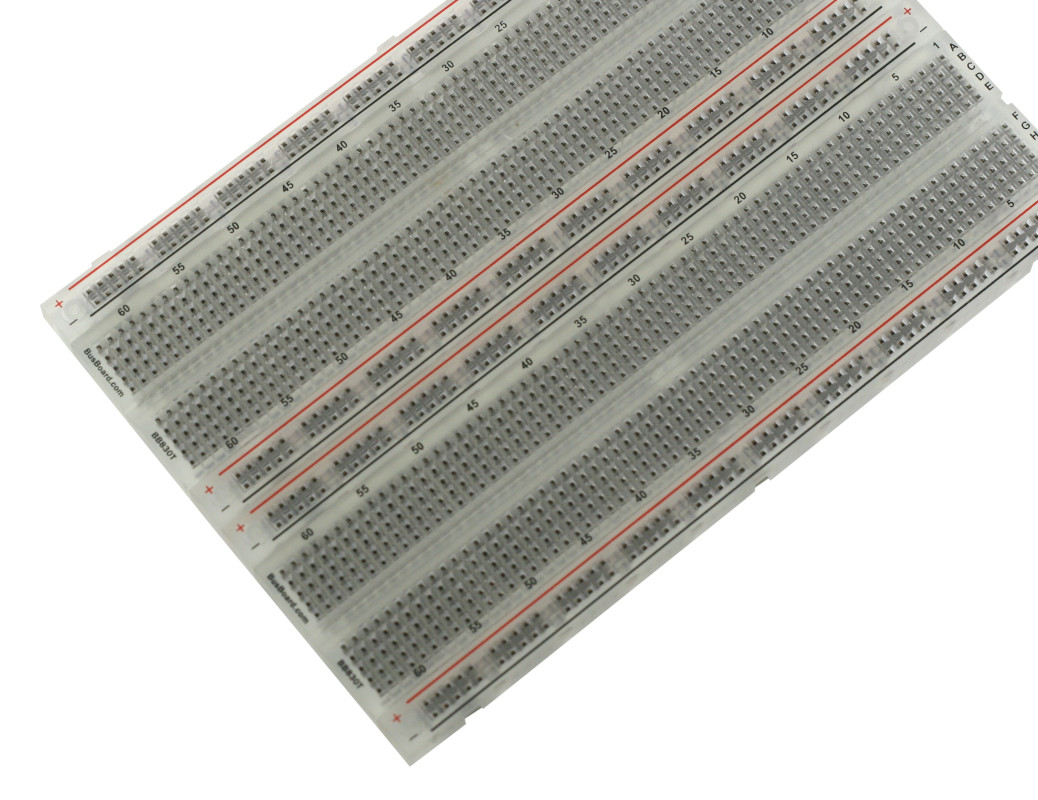

  • ABS plastic body with black printed legend. Color legend on distribution strips.
  • Contacts are Phosphor Bronze with Plated Nickel Finish, rated for 50,000 insertions.
  • Rated at 36 Volts, 2 Amps.
  • Insertion Wire Size is 21 to 26 AWG, 0.016 to 0.028 inches diameter (0.4 to 0.7mm diameter)
  • Size: 6.5 x 4.3 x 0.3in (165.1 x 108.6 x 8.5mm)

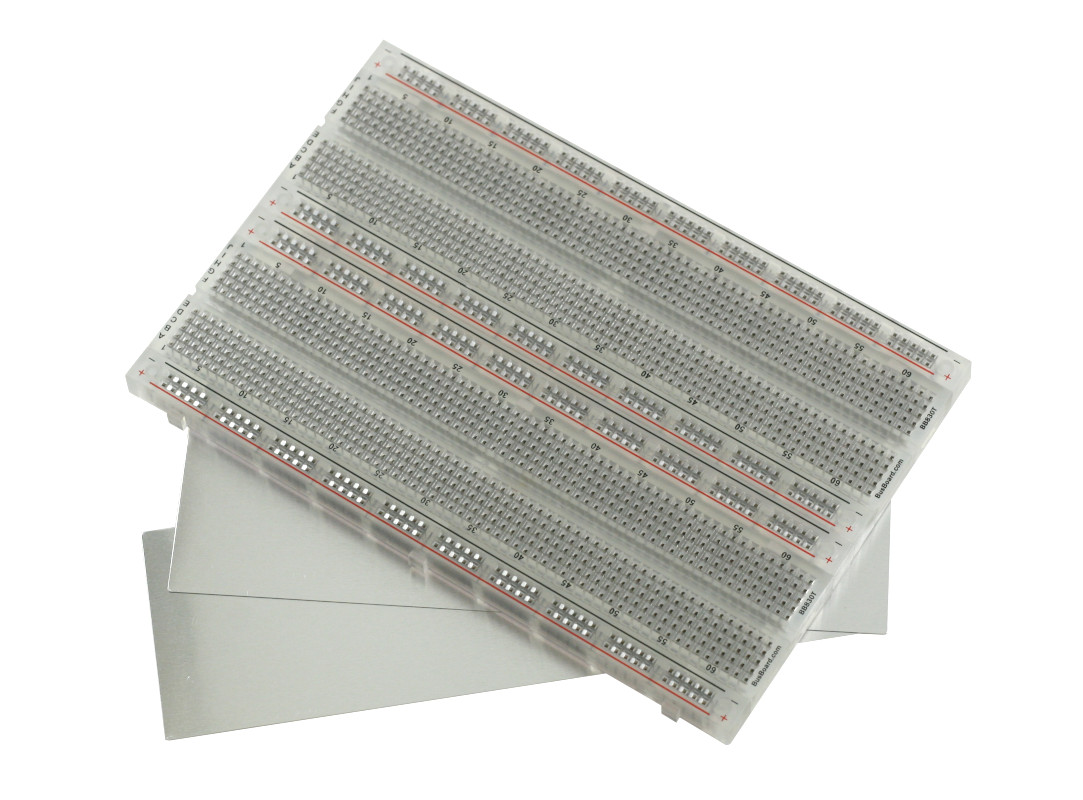

  • Peelable adhesive tape backing provided for attaching to a surface. Metal back plates provided.
Description:

BreadBoard-1660 is a solderless (plug-in) breadboard with 1660 connection tie-points (i.e. 1660 wire insertion holes). It has 8 power rails. Solderless breadboards are great for building and testing new circuits because parts can be easily inserted and removed. They are completely re-usable. The BB1660 has two 630 tie-point IC-circuit areas plus eight 50 tie-point power rails. The housing is made of white ABS plastic, with a printed legend giving numbers and letters for columns and rows. The internal contacts are phosphor bronze with a plated nickel finish. A peelable adhesive tape backing is provided for attaching it to a surface and optional metal back plates are provided. BPS BreadBoards are Lead-Free and RoHS Compliant. Finished projects can be moved to an SB1660 Solderable PC BreadBoard to make them permanent.

Documentation:

Datasheet
PDF-1.1MB
